| Sonderangebot | |
| Produktcode: | AD1795 |
| Listenpreis: | |
| Preis ohne MWSt.: | 18,03 € |
| Preis inkl. MWSt.: | 21,45 € |
| Sie sparen: | 3,10 € (12%) |
| Stückzahl auf Lager: | 80 |
| Verfügbarkeit: | Auf Lager |
| Size | 23.85 x 23.85 mm |
| Product Options | High-CRI |
| Maximum Drive Current | 1.6 A |
| Maximum Power | 65 W |
| Light Output Range | 3000 - 5700 lm |
| Maximum Efficacy at Binning Conditions | 145 lm/W |
| Light Emitting Surface (LES) | 19 mm |
| Typical Forward Voltage | 36.4 V @ 800 mA |
| Maximum Reverse Current | 0.1 mA |
| Viewing Angle | 115 ° |
| Binning | 85°C ANSI (White) 2- and 4-Step EasyWhite® |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| RoHS-Compliant | Yes |
| REACH-Compliant | Yes |
| UL-Recognized | Yes - Level 4 Enclosure Consideration |

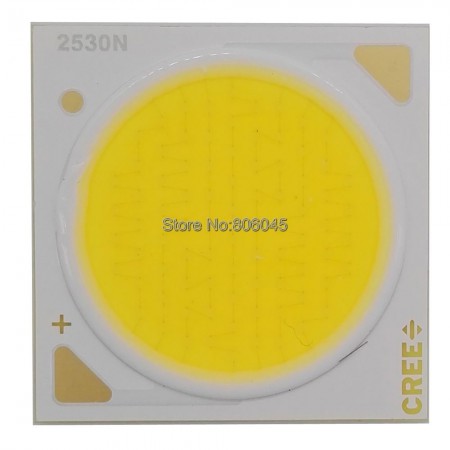

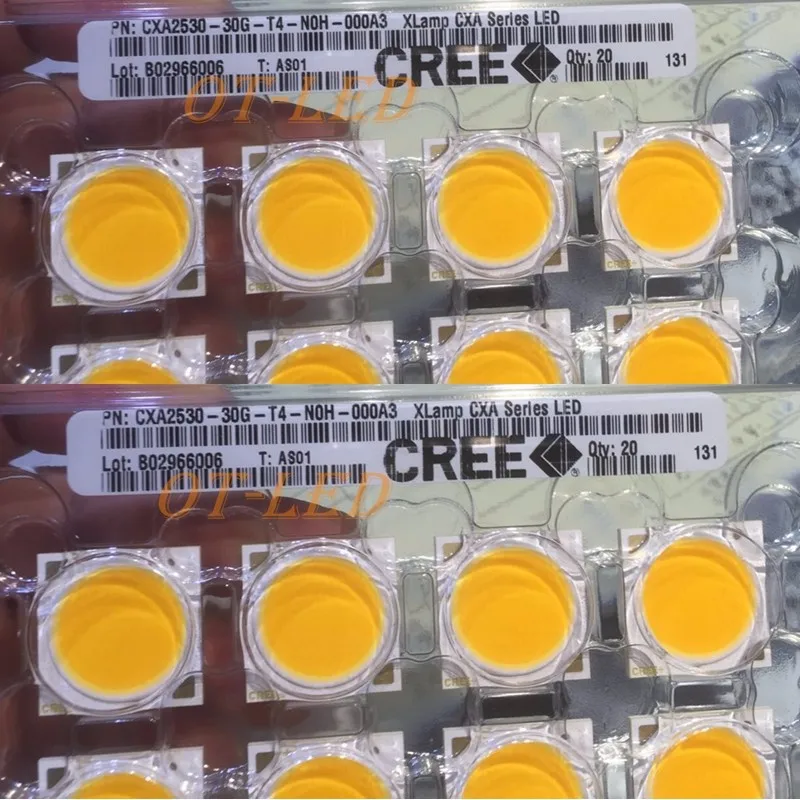

The XLamp CXA2530 LED Array delivers high lumen output and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering. Optimized to simplify designs and lower system cost, the CXA2530 LED Array can deliver system-level performance of 2000 to 5000 lumens, enabling applications that traditionally use halogen, ceramic metal halide and compact fluorescent technology.
Size 23.85 x 23.85 mm
Product Options High-CRI
Maximum Drive Current 1.6 A
Maximum Power 65 W
Light Output Range 3000 - 5700 lm
Light Emitting Surface (LES) 19 mm
Typical Forward Voltage 36.4 V 0.80 A (85°C)
Viewing Angle 115 °
Binning 85°C
ANSI (White) 2- and 4-Step EasyWhite®
RoHS Compliant Yes
REACH compliant Yes
UL recognized Yes - Level 4 Enclosure Consideration
Package Size 23.85 x 23.85 mm
Kelvin 3000K/5000K
Package Included:
1PCS X Cree CXA 2530 Led Light
