Cree CXA 2530 T4 Weiß 3000K 5000K 60W COB Led

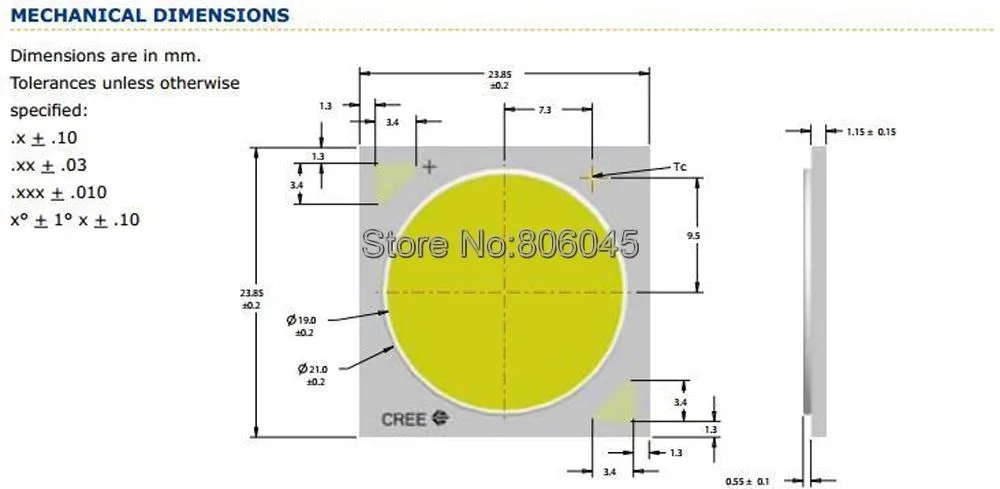

| Size | 23.85 x 23.85 mm |
| Product Options | High-CRI |
| Maximum Drive Current | 1.6 A |
| Maximum Power | 65 W |
| Light Output Range | 3000 - 5700 lm |
| Maximum Efficacy at Binning Conditions | 145 lm/W |
| Light Emitting Surface (LES) | 19 mm |
| Typical Forward Voltage | 36.4 V @ 800 mA |
| Maximum Reverse Current | 0.1 mA |
| Viewing Angle | 115 ° |
| Binning | 85°C ANSI (White) 2- and 4-Step EasyWhite® |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| RoHS-Compliant | Yes |
| REACH-Compliant | Yes |
| UL-Recognized | Yes - Level 4 Enclosure Consideration |
- Item Type:LED Bulbs
- Beam Angle(°):120°
- LED Chip Brand:Cree
- Average Life (hrs):50000
- Shape:Bar
- Voltage:36V
- Certification:CE,FCC
- Power Tolerance:1%
- Number of LED Chip:1 pcs
- Color Temperature:Nature White(3500-5500K)
- Occasion:living room
- Led Bulb Type:Spotlight Bulb
- Item Type:LED Bulbs
- Color Temperature:Nature White(3500-5500K)

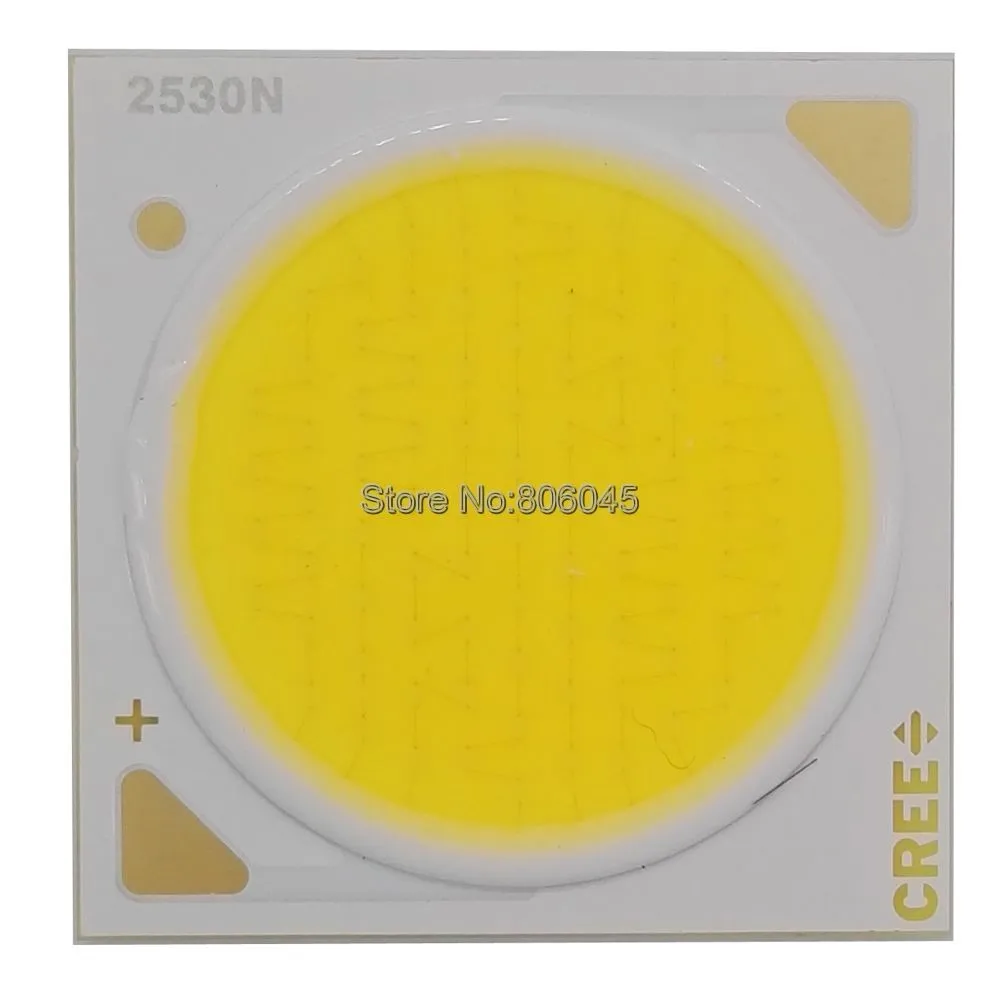

Cree CXA 2530 White 3000K 5000K 60W COB Led
The XLamp CXA2530 LED Array delivers high lumen output and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering. Optimized to simplify designs and lower system cost, the CXA2530 LED Array can deliver system-level performance of 2000 to 5000 lumens, enabling applications that traditionally use halogen, ceramic metal halide and compact fluorescent technology.
Size 23.85 x 23.85 mm
Product Options High-CRI
Maximum Drive Current 1.6 A
Maximum Power 65 W
Light Output Range 3000 - 5700 lm
Light Emitting Surface (LES) 19 mm
Typical Forward Voltage 36.4 V 0.80 A (85°C)
Viewing Angle 115 °
Binning 85°C
ANSI (White) 2- and 4-Step EasyWhite®
RoHS Compliant Yes
REACH compliant Yes
UL recognized Yes - Level 4 Enclosure Consideration
Package Size 23.85 x 23.85 mm
Kelvin 3000K/5000K
Package Included:
1PCS X Cree CXA 2530 Led Light
| Stückzahl auf Lager: | 80 |
| Sie sparen: | 3,10 € (12%) |
| Hersteller: | lumen-laden |
| Gewicht: | 0,002kg |
| Produktcode: | AD1795 |
